TECHNICAL DATA |

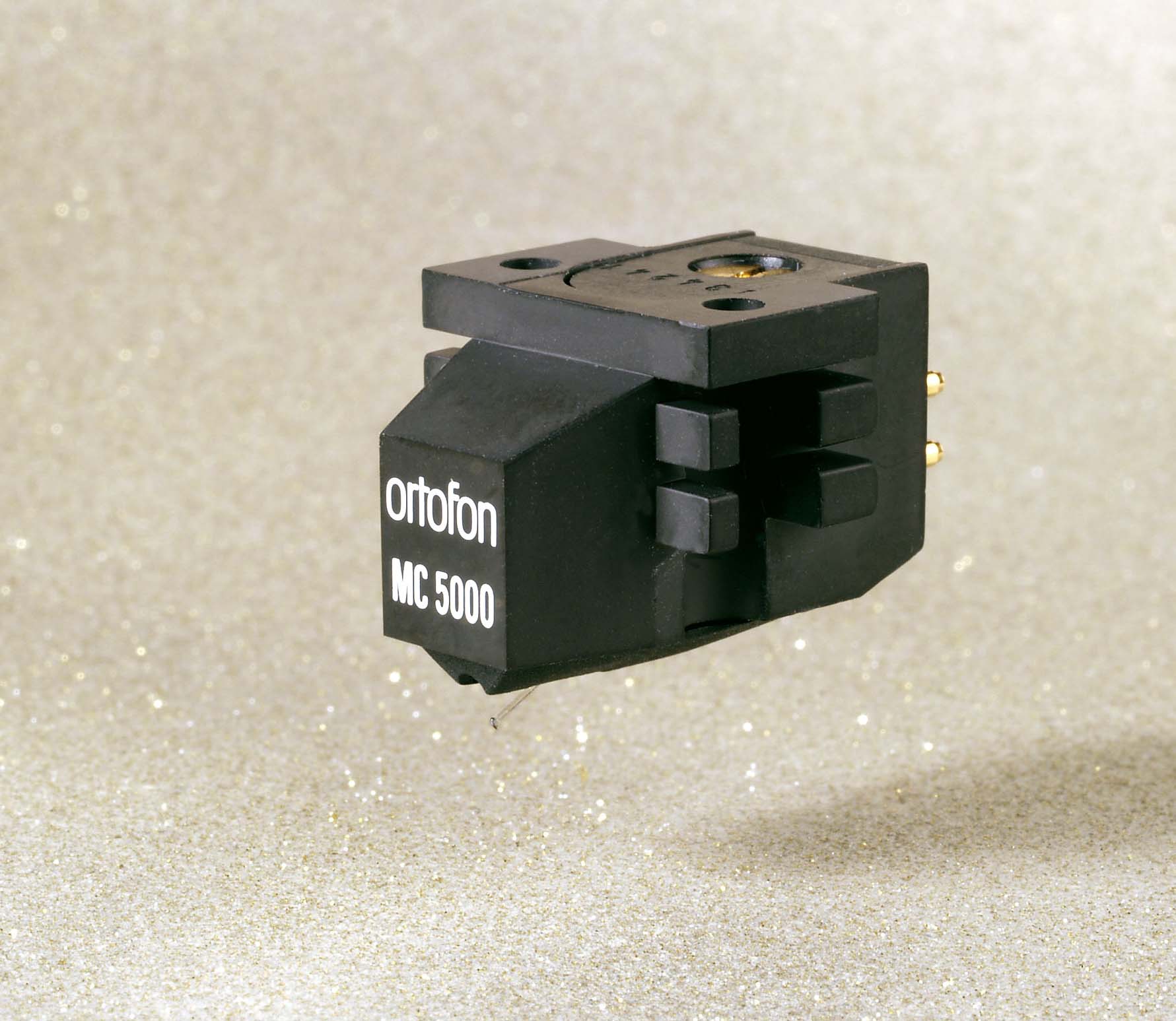

MC 5000 |
|
Output voltage at 1000 Hz,
5cm/sec. |
140 µV |
|
Channel balance at 1 kHz |
< 0,5 dB |
|
Channel separation at 1 kHz |
> 25 dB |
|
Channel separation at 15 kHz |
> 15 dB |
|
Frequency range at - 3dB |
5-80.000 Hz |
|
Frequency response |
20-20.000 Hz + 2,5 / - 0 dB |
|
FIM distortion at recommended
tracking force, DIN 45.542 |
< 1% |
|
Tracking ability at 315Hz at
recommended tracking force |
> 90 µm |
|
Compliance, dynamic, lateral |
12 µm/mN |
|
Stylus type |
Nude Ortofon Replicant 100 |
|
Stylus tip radius |
r/R 5/100 µm |
|
Equivalent stylus tip mass |
0,25 mg |
|
Tracking force range |
2,2-2,7 g (22-27 mN) |
|
Tracking force, recommended |
2,5 g (25 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
6 Ohm |
|
Recommended load impedance |
> 20 Ohm |
|
Cartridge body material |
Ceramic Sapphire |
|
Cartridge colour |
Black |
|
Cartridge weight |
9,5 g |
|
