TECHNICAL DATA |

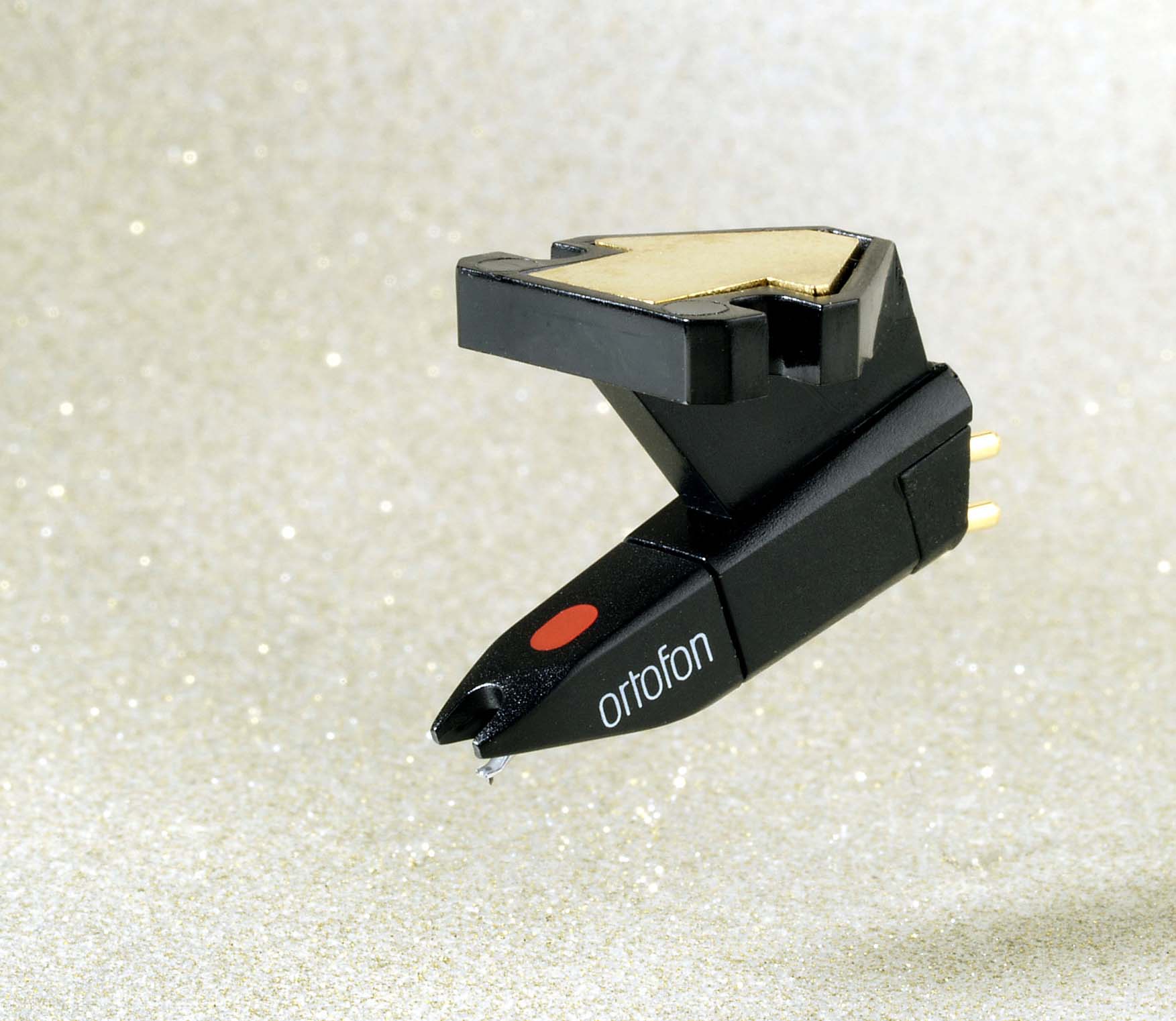

SUPER OM 30 |
|
Output voltage at 1000 Hz,
5cm/sec. |
4 mV |
|
Channel balance at 1 kHz |
1 dB |
|
Channel separation at 1 kHz |
25 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at - 3dB |
20-29.000 Hz |
|
Frequency response |
20-20.000 + 2 / - 0 dB |
|
FIM distortion at recommended
tracking force, DIN 45.542 |
< 1% |
|
Tracking ability at 315Hz at
recommended tracking force |
90 µm |
|
Compliance, dynamic, lateral |
25 µm/mN |
|
Stylus type |
Nude Fine Line |
|
Stylus tip radius |
r/R 8/40 µm |
|
Equivalent stylus tip mass |
0,3 mg |
|
Tracking force range |
1,25-1,75 g (12,5-17,5 mN) |
|
Tracking force, recommended |
1,5 g (15 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
1 kOhm |
|
Internal inductance |
580 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
200-400 pF |
|
Cartridge colour, body/stylus |
Black/Black |
|
Cartridge weight |
5 g |
|
Replacement stylus unit |
Stylus 30 |
