TECHNICAL DATA |

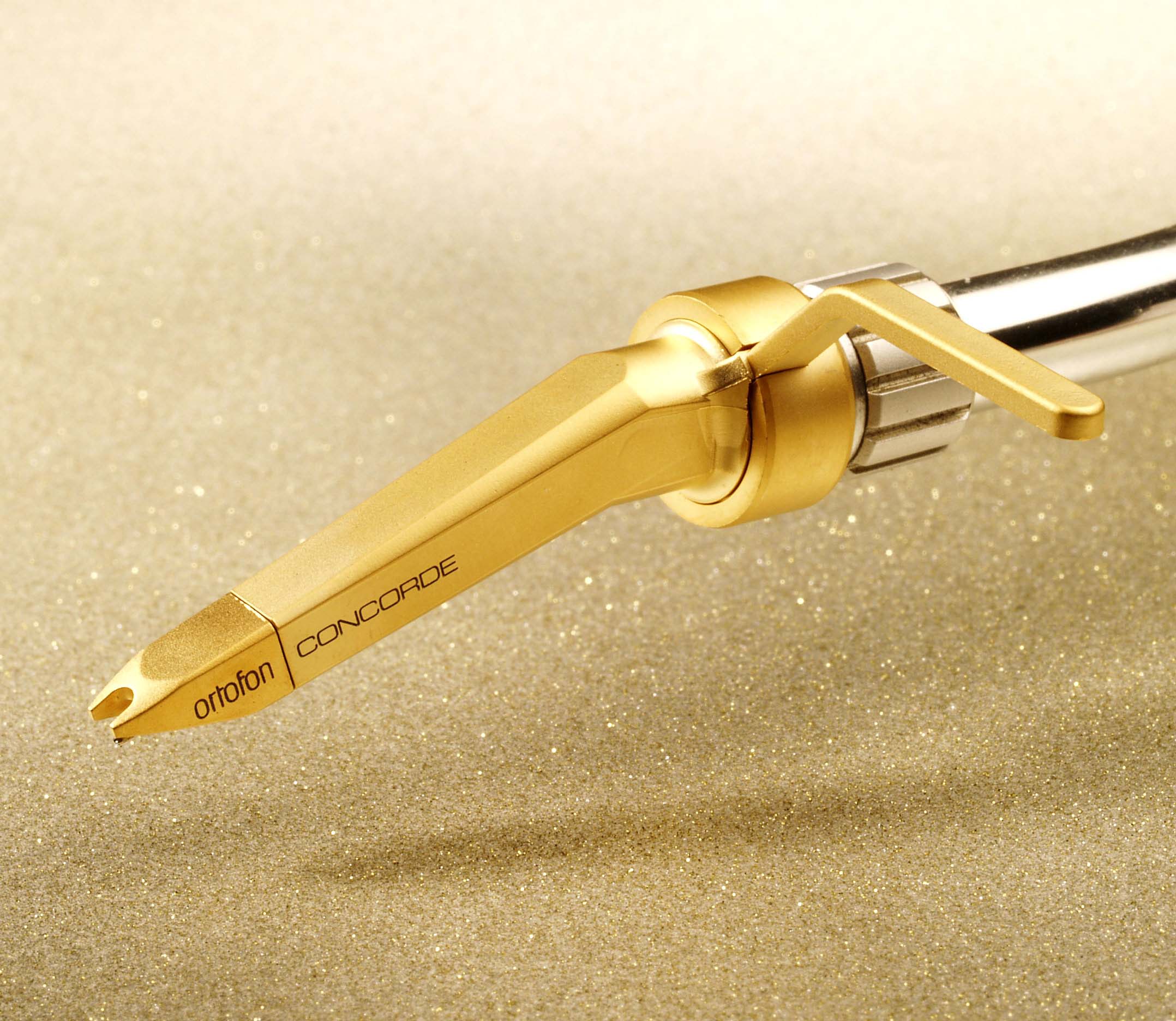

CONCORDE GOLD |
|
Output voltage at 1000 Hz,
5cm/sec. |
6 mV |
|
Channel balance at 1 kHz |
1,5 dB |
|
Channel separation at 1 kHz |
23 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at - 3dB |
20-22.000 Hz |
|
Frequency response |
20-20.000 Hz ± 2 dB |
|
FIM distortion at recommended
tracking force, DIN 45.542 |
< 1% |
|
Tracking ability at 315Hz at
recommended tracking force |
80 µm |
|
Compliance, dynamic, lateral |
7 µm/mN |
|
Stylus type |
Special elliptical |
|
Stylus tip radius |
r/R 13/25 µm |
|
Equivalent stylus tip mass |
0,5 mg |
|
Tracking force range |
2,0-5,0 g (20-50 mN) |
|
Tracking force, recommended |
3,0 g (30 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
750 Ohm |
|
Internal inductance |
450 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
200-600 pF |
|
Cartridge colour, body/stylus |
Gold/Gold |
|
Cartridge weight |
18,5 g |
|
Replacement stylus unit |
Gold |
|
